Braille Printer / Braille Embosser

We offer a commercial grade Braille Printer / Embosser and if required, a  full maintenance and support service to back it up.

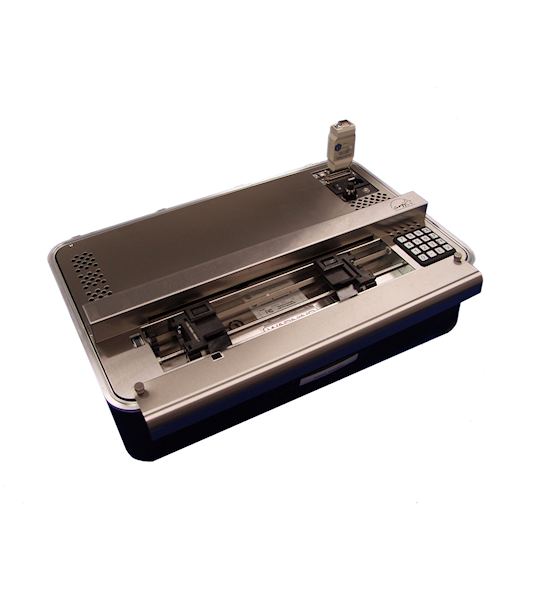

The Ditac Braille-tac Embosser has been designed for the special requirements of Commercial Braille label production; often used by the pharmaceutical packaging sector.

Our brailler produces the highest quality Braille available and is available in two versions. The Ditac Braille-tac Embosser narrow version that can produce up to a 24 character Braille line and the Ditac Braille-tac Embosser wide version that can produce up to a 40 character Braille line.

Both versions of this Braille Printer are fully compatible with the Braille label modes incorporated in the Duxbury Braille Translator from Duxbury Systems. When coupled with this innovative software package, sold separately, your Ditac Braille-tac Embosser can be installed into an automated braille label production system.

Packed with Features:

The Ditac Braille-tac Braille Printer, comes in two versions, narrow and wide; both of which come with the following features as standard:

  • Adjustable vertical label sizes from 0.5 inches to 4.0 inches in 0.25 inch increments.

  • Produces approximately 4,500, 1.5 inch by 6 inch labels per hour.

  • Includes ET Speakers that provides automatic speech feedback as you use the embosser.

  • Dynamic Braille Scaling for different Braille sizes.

  • Embosses high-quality, single-sided Braille on continuous form, tractor feed label stock.

  • Includes Single Sheet Tractors that will allow you to emboss up to 22 lines on 11 inch non-tractor paper (such as letterhead or other special media) by hand-feeding one sheet at a time through the embosser.

  • Produces 6 or 8 dot Braille.

  • Includes visual On/Off Line LED Indicator.

The Ditac Braille-tac Embosser comes with built in USB, parallel and serial ports and easily connects to any modern computer system.

This Braille Printer comes with a 1-year factory warranty, USB cable, line cord, user manual & printer driver on CD-ROM and free telephone customer support and/or email support.

Annual Service Maintenance Agreements (SMA) for this and the Romeo Pro LE Embosser are also available for purchase.

  • Printing Speed: Dependent on label size. Typical, 4,500, 1.5 inch labels per hour (one label across on narrow version and two labels across on wide version).

  • Line Width: Narrow version up to 24 characters with Library of Congress spacing. Wide version up to 40 characters with Library of Congress spacing.

  • Paper Width: Adjustable. Narrow version 1.5 to 8.5 inches (3.8 to 21.6 cm). Wide version 1.5 to 13.25 inches (3.8 to 33.6 cm).

  • Page Length: Selectable. 0.5 to 4.0 inches (1.3 to 10.2 cm).

  • Paper: Continuous tractor feed stock. *Cut sheets, manually fed one at a time.

  • Paper Weight: Variable.

  • Spacing formats available. Regular (Library of Congress), California sign, Jumbo, Regular with relaxed line spacing, Petite (Japanese), Petite with relaxed line spacing for interline printing and Marburg Medium.

  • Width: 21.25 inches (53.9 cm).

  • Depth: 13.25 inches (33.6 cm).

  • Height: 8.25 inches (20.9 cm); without lid 6.00 inches (15.2 cm).

  • Weight: 32 pounds (14.5 kg).

  • Case Style: Plastic carrying case with handle.

  • Temperature: Operating or Storage: 35 F to 100 F (2 C to 37.8 C).

  • Humidity: Operating or Storage: 10% to 95% noncondensing.

  • Shock: 3 foot drop (approximately 5G).

  • Line Voltage: Universal, 90 to 260 VAC.

  • Fuse Ratings: 1.6A slow blow.

  • Watts: (operating) approximately 65.

  • Interface: (Port 1) Centronics compatible parallel. (Port 2) Serial, 9-pin, RS-232D, DTE. (Port 3) USB.

  • All Windows Operating Systems through Windows 8 64-bit.

  • Windows based computer with Parallel, Serial or USB port.

  • Braille Translation software.

  • Braille label stock or paper.
